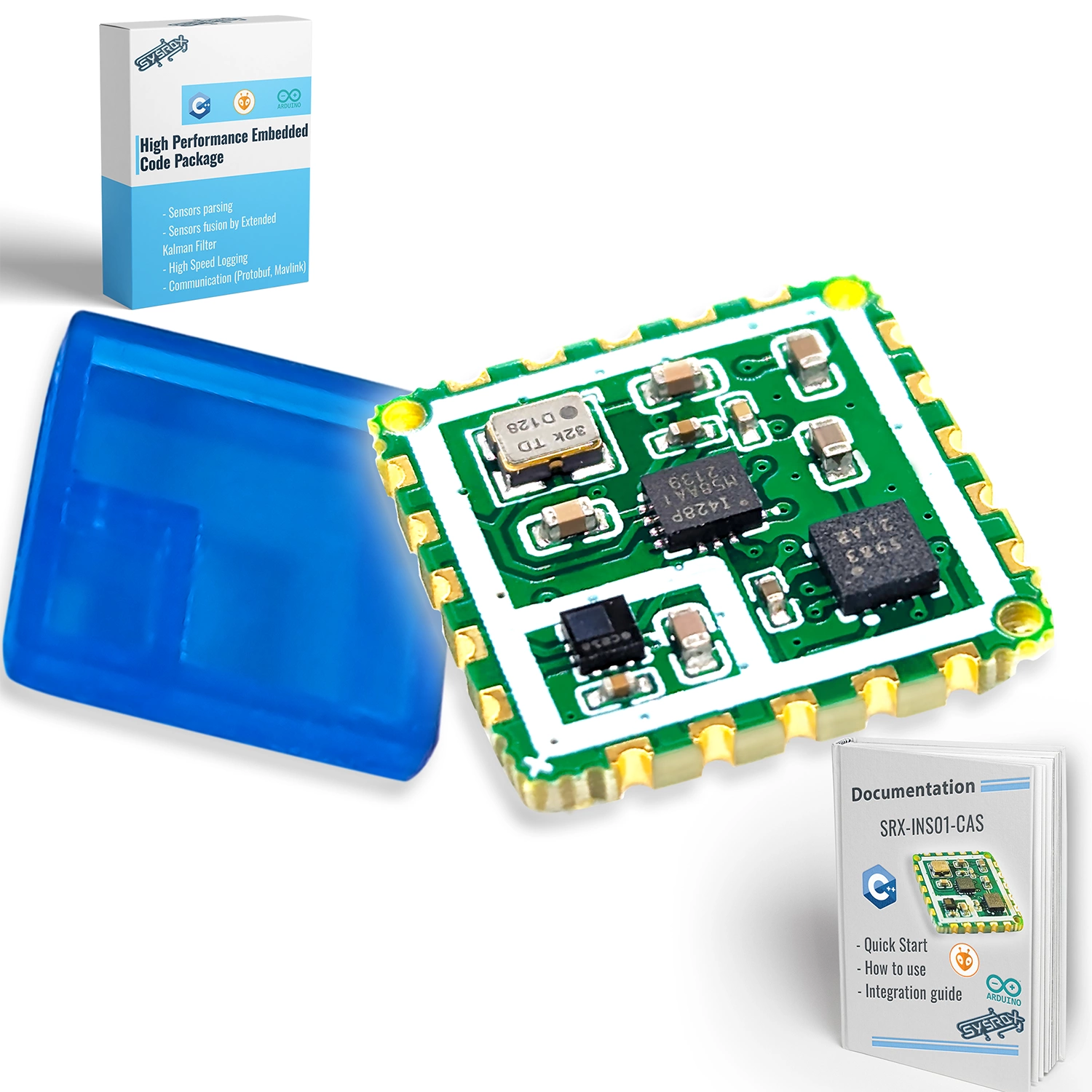

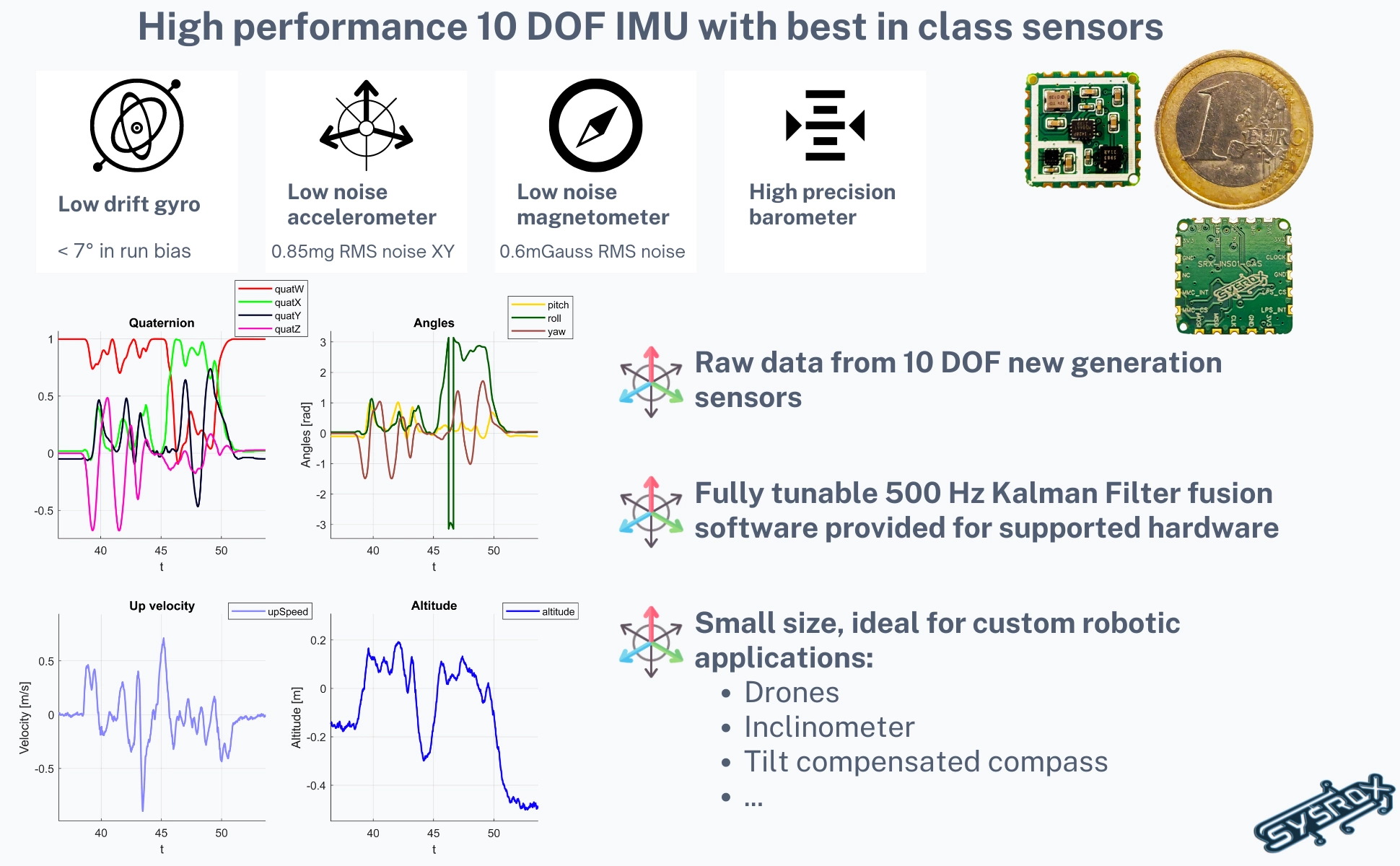

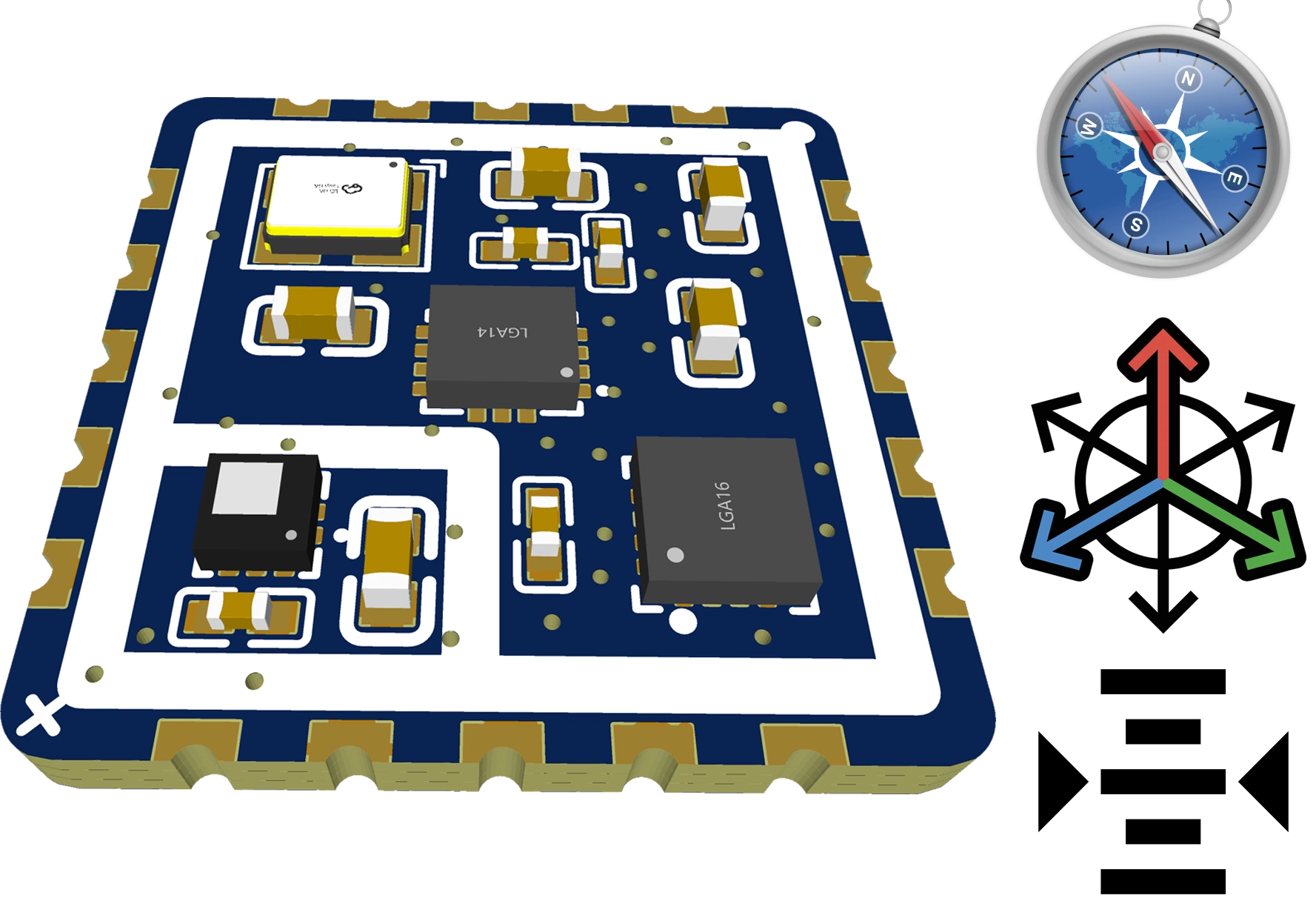

10 DOF ahrs imu: accelerometer gyroscope magnetometer barometer icm-42688 mmc5983ma lps22hb SPI Castellated Board for Arduino or Raspberry
- Compact castellated board with glue-on cover included perfect for host board soldering
- Best in class sensors integrated: Accelerometer/Gyroscope icm-42688-p, magnetometer mmc5983ma, barometer lps22hb
- High precision tcxo quartz reducing gyroscope drift to less than 7° in run bias
- Fully customizable software with extensive documentation

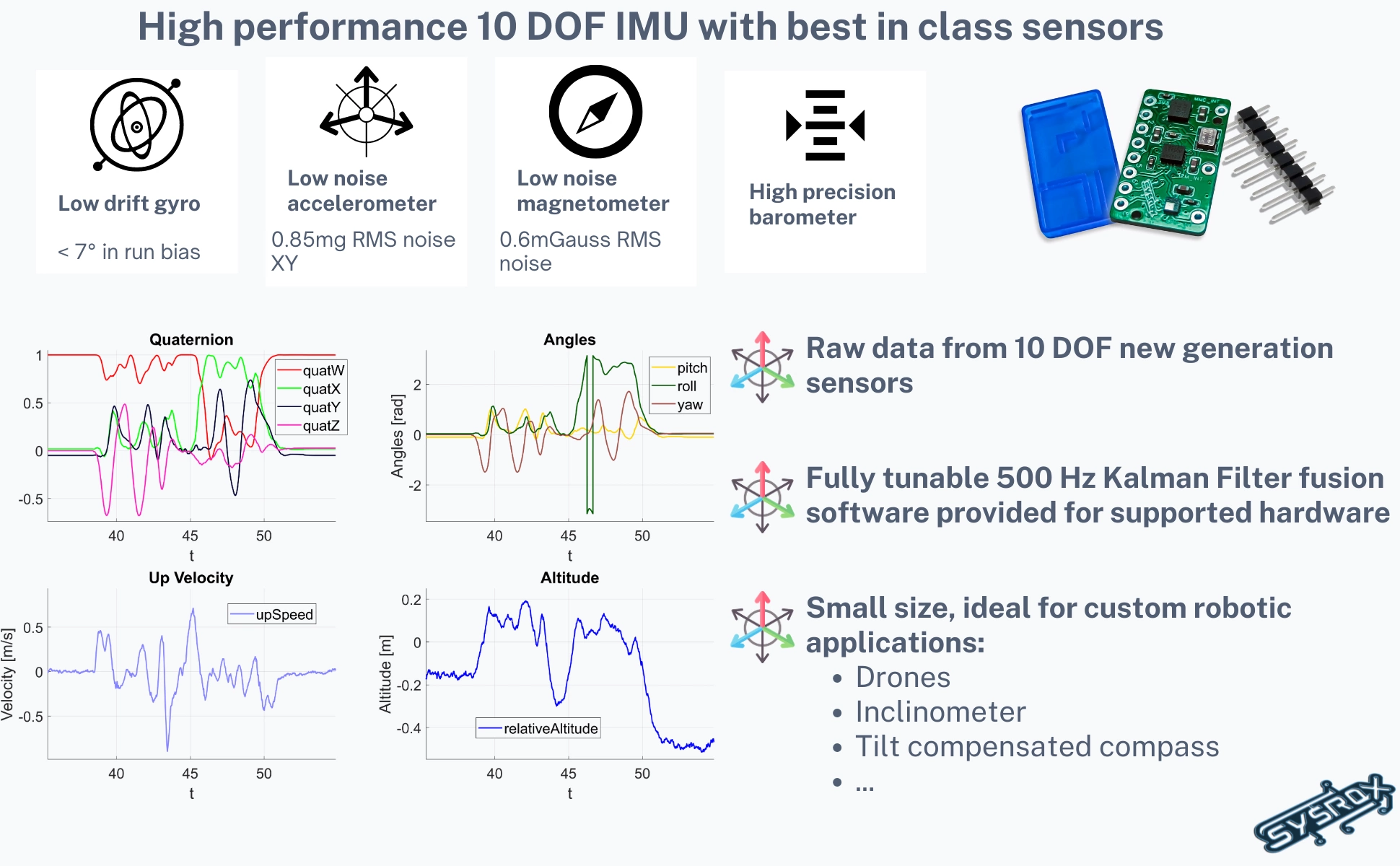

10 DOF ahrs imu: accelerometer gyroscope magnetometer barometer icm-42688 mmc5983ma lps22hb SPI Breakout Board for Arduino or Raspberry
- Compact dev-board with glue-on cover included
- Best in class sensors integrated: Accelerometer/Gyroscope icm-42688-p, magnetometer mmc5983ma, barometer lps22hb
- High precision tcxo quartz reducing gyroscope drift to less than 7° in run bias
- Fully customizable software with extensive documentation

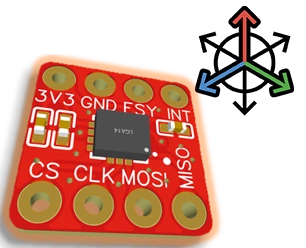

Nano Sensor: Imu 6Dof Accelerometer Gyroscope icm-42688 SPI Breakout Board for Arduino or Raspberry
Ultra compact breakout board featuring latest Accelerometer/Gyroscope combo from invensense: icm-42688-p

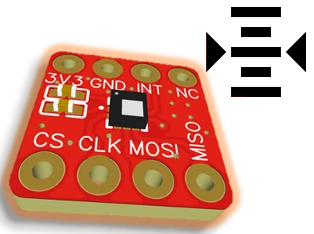

Nano Sensor: Barometric Pressure/Altitude/Temperature Sensor with SPI Communication for Arduino or Raspberry
Ultra compact breakout board featuring high performance barometer sensor from ST: lps22hb

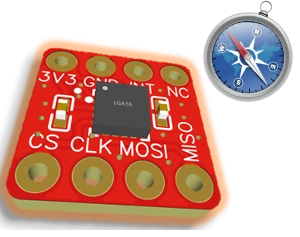

Nano Sensor: 3-axis Magnetometer High-Performance Compass 0.5° Precise Heading Measurement SPI Communication for Arduino or Raspberry
Ultra compact breakout board featuring best consumer grade magnetometer from Memsic mmc5983ma

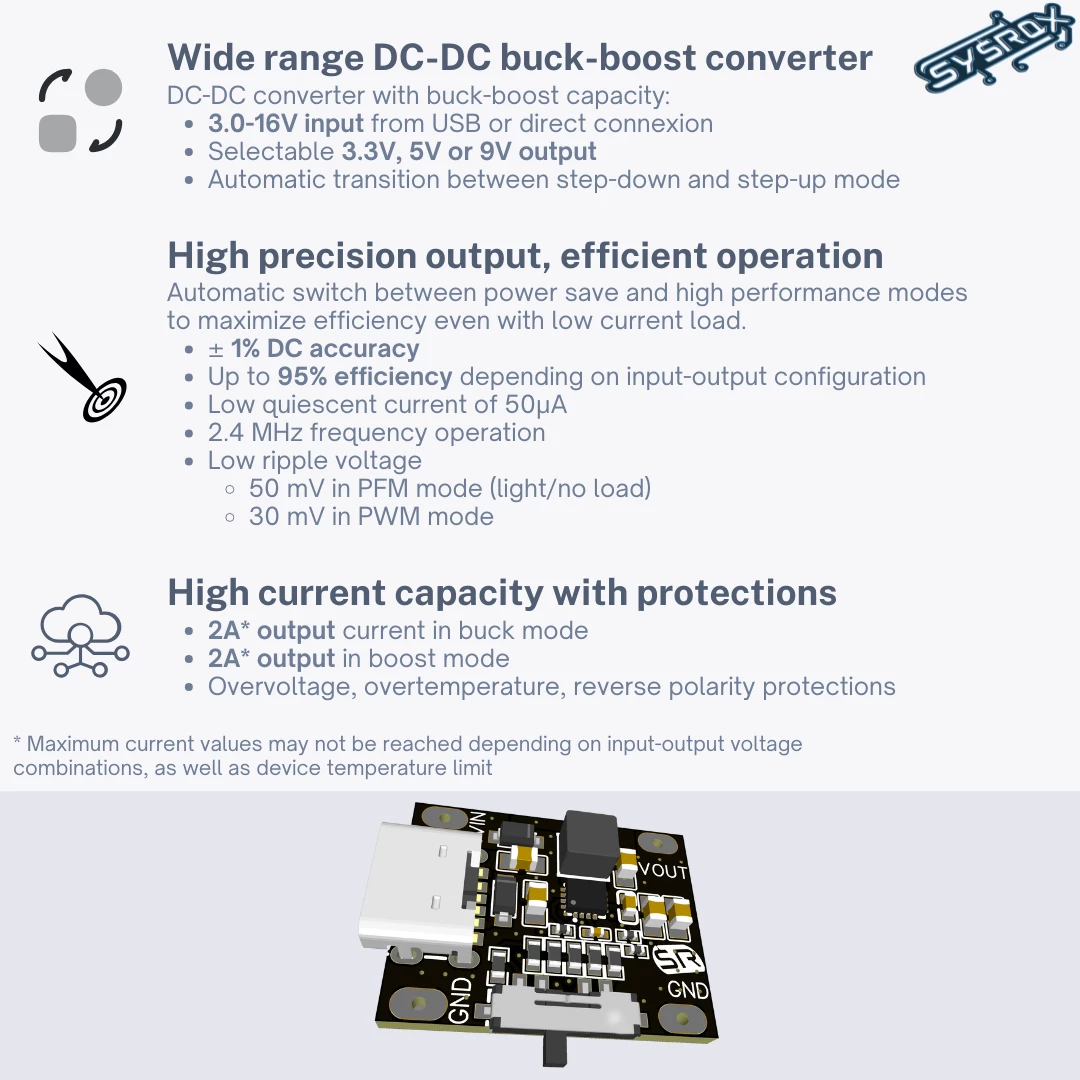

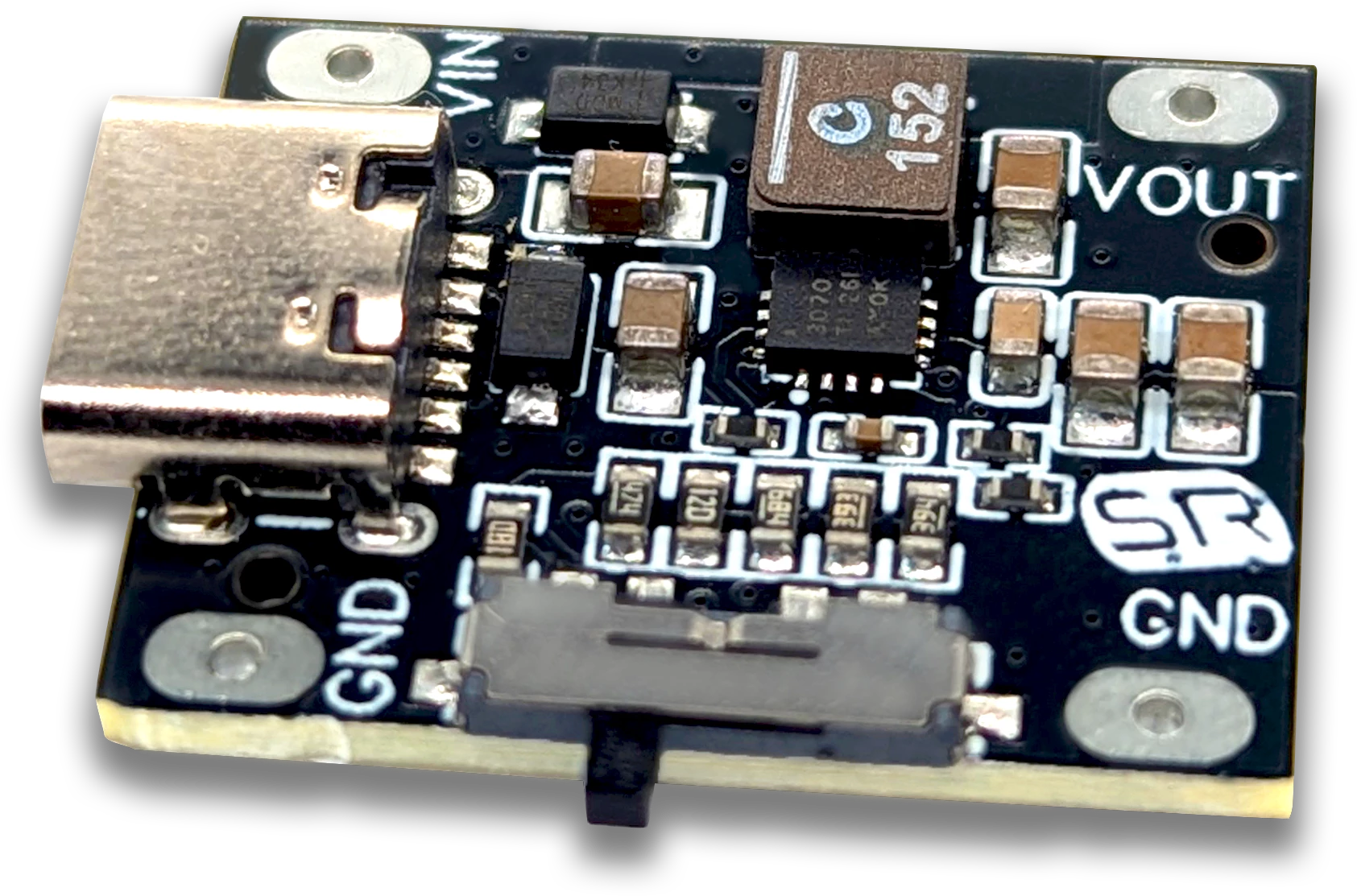

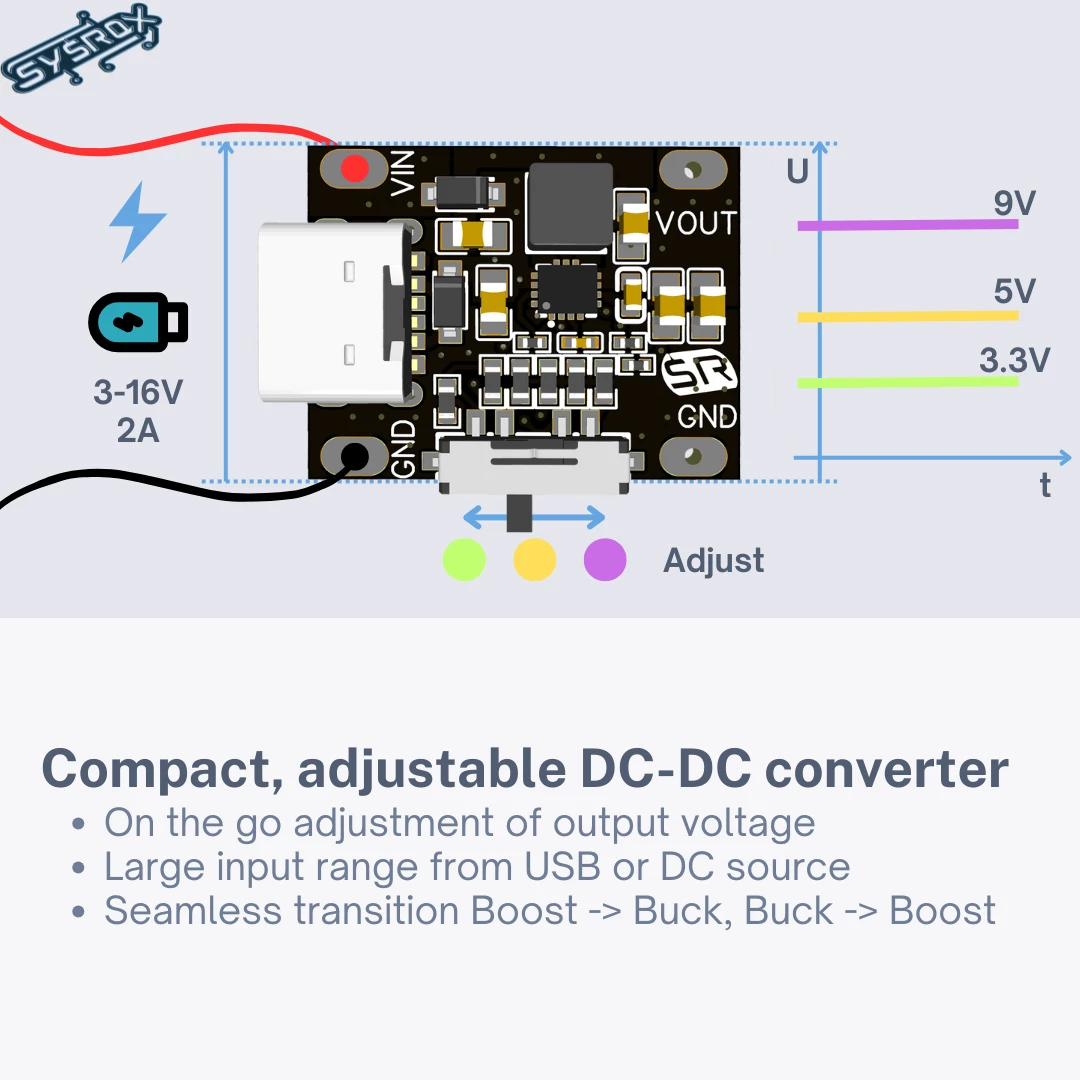

DC-DC Buck-Boost Converter 3-16V to 3.3V / 5V / 9V, Max 2A Arduino Step-Up Step-Down Voltage Regulator with USB Type C Input
Ultra compact breakout board with usb type C input, featuring high performance DC DC Buck Boost regulator from TI: TPS63070

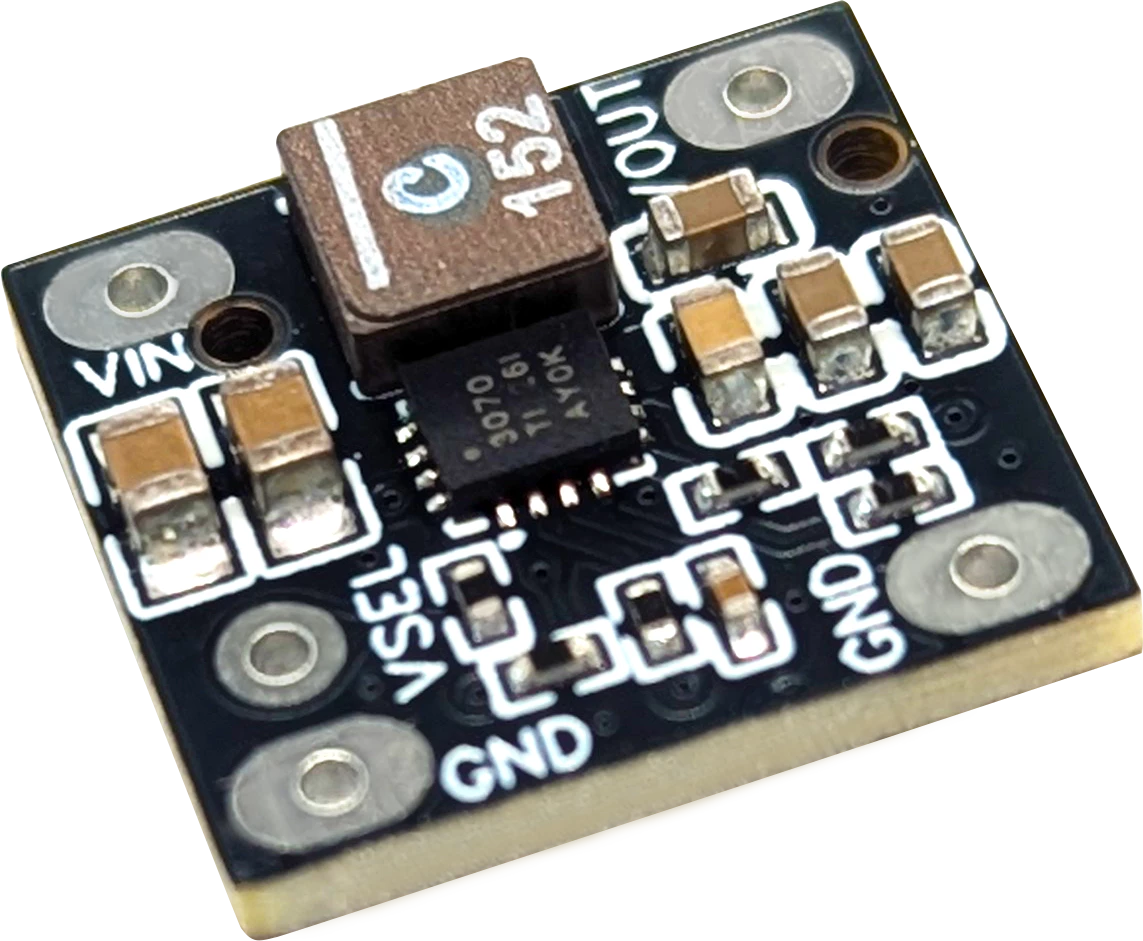

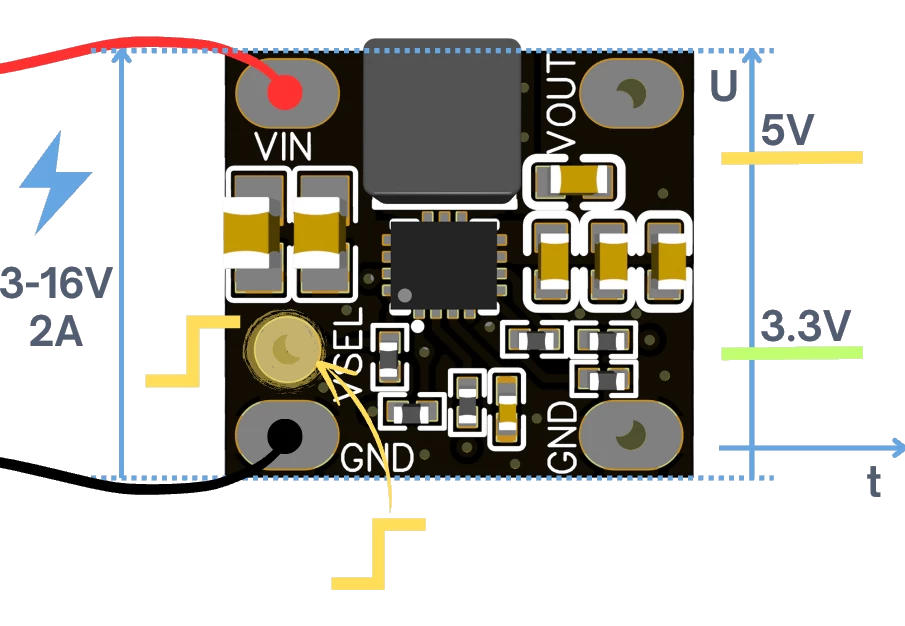

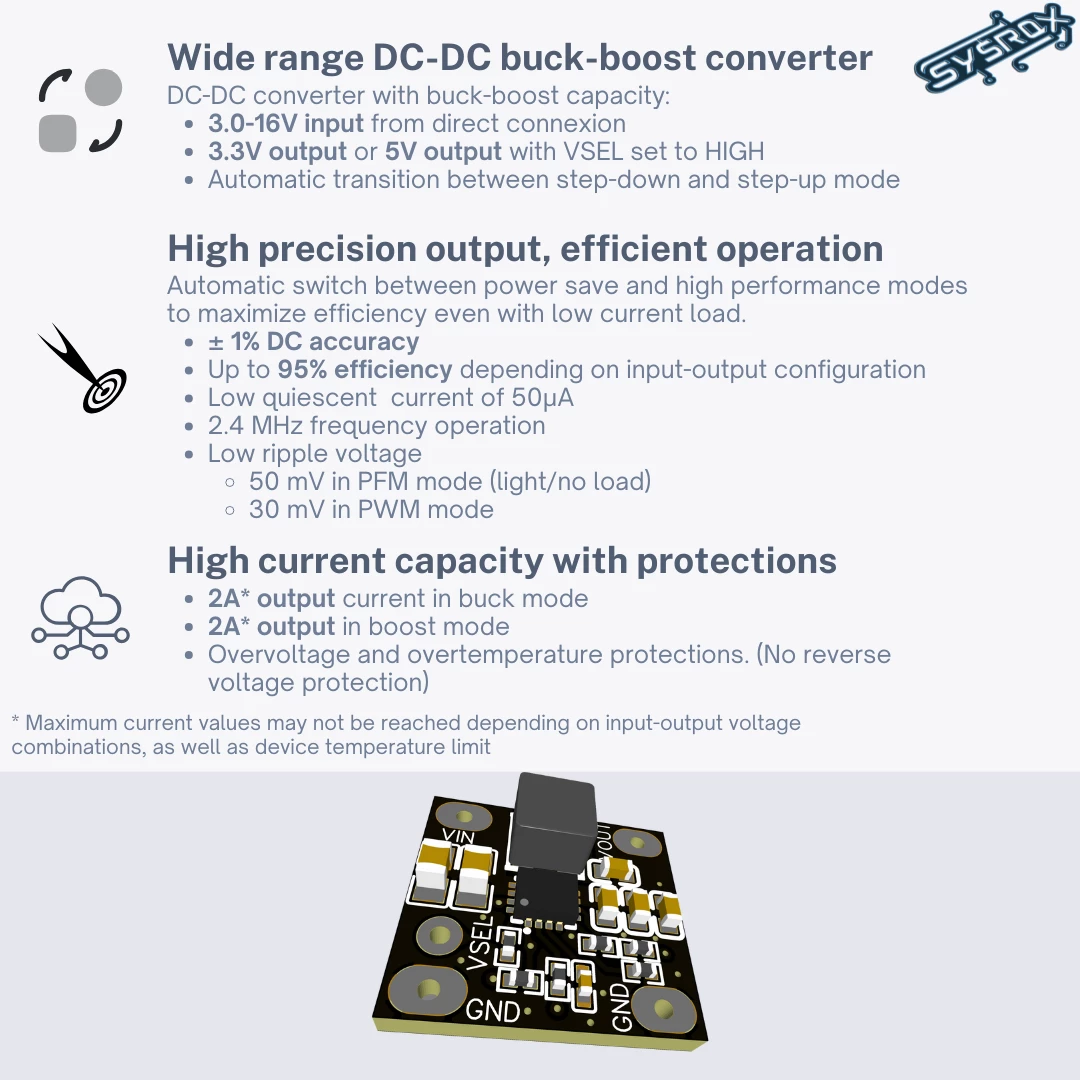

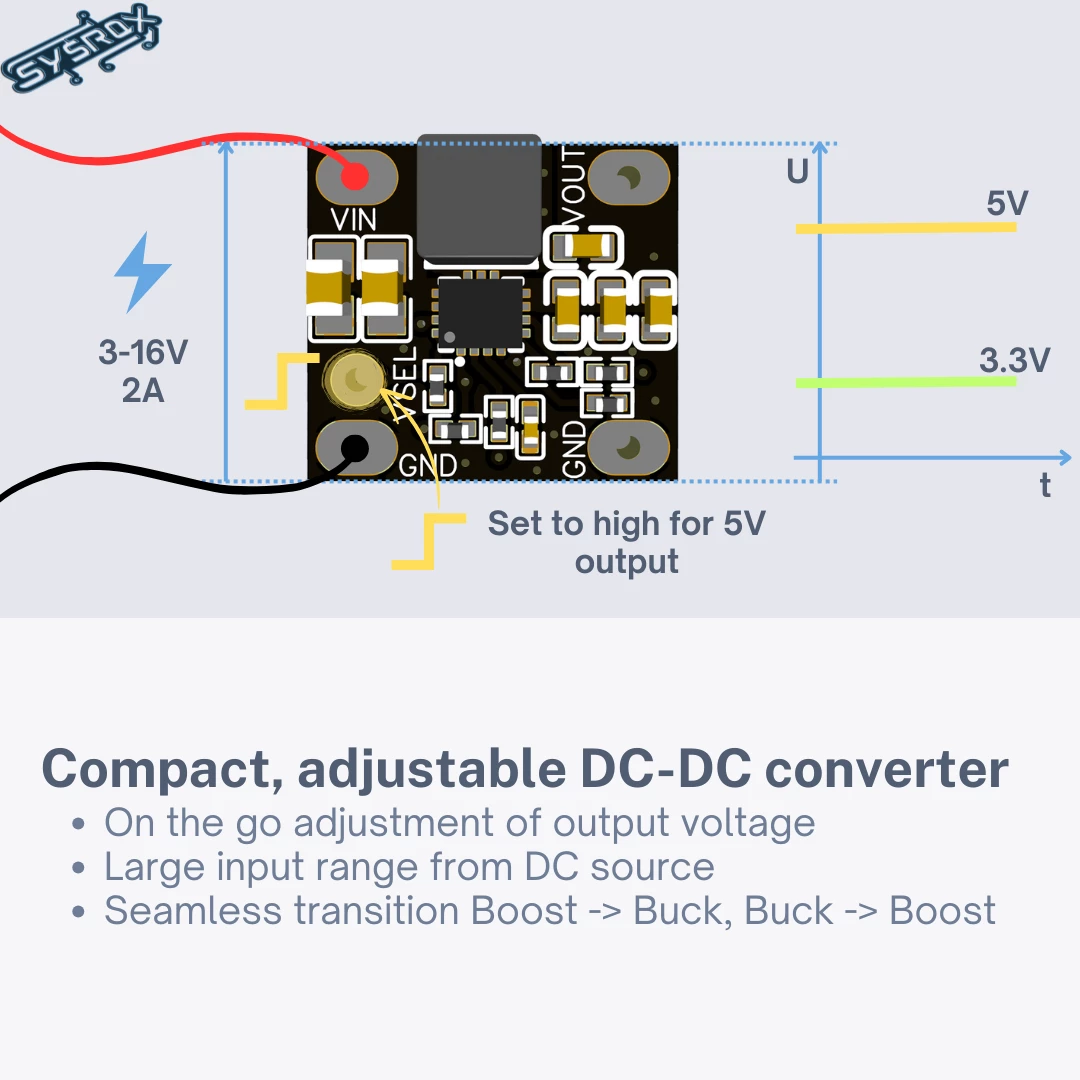

DC-DC Buck-Boost Converter 3-16V to 3.3V / 5V, Max 2A Arduino Step-Up Step-Down Nano Voltage Regulator
Ultra compact breakout board featuring high performance DC DC Buck Boost regulator from TI: TPS63070
General FAQ
How are designed sensor boards?

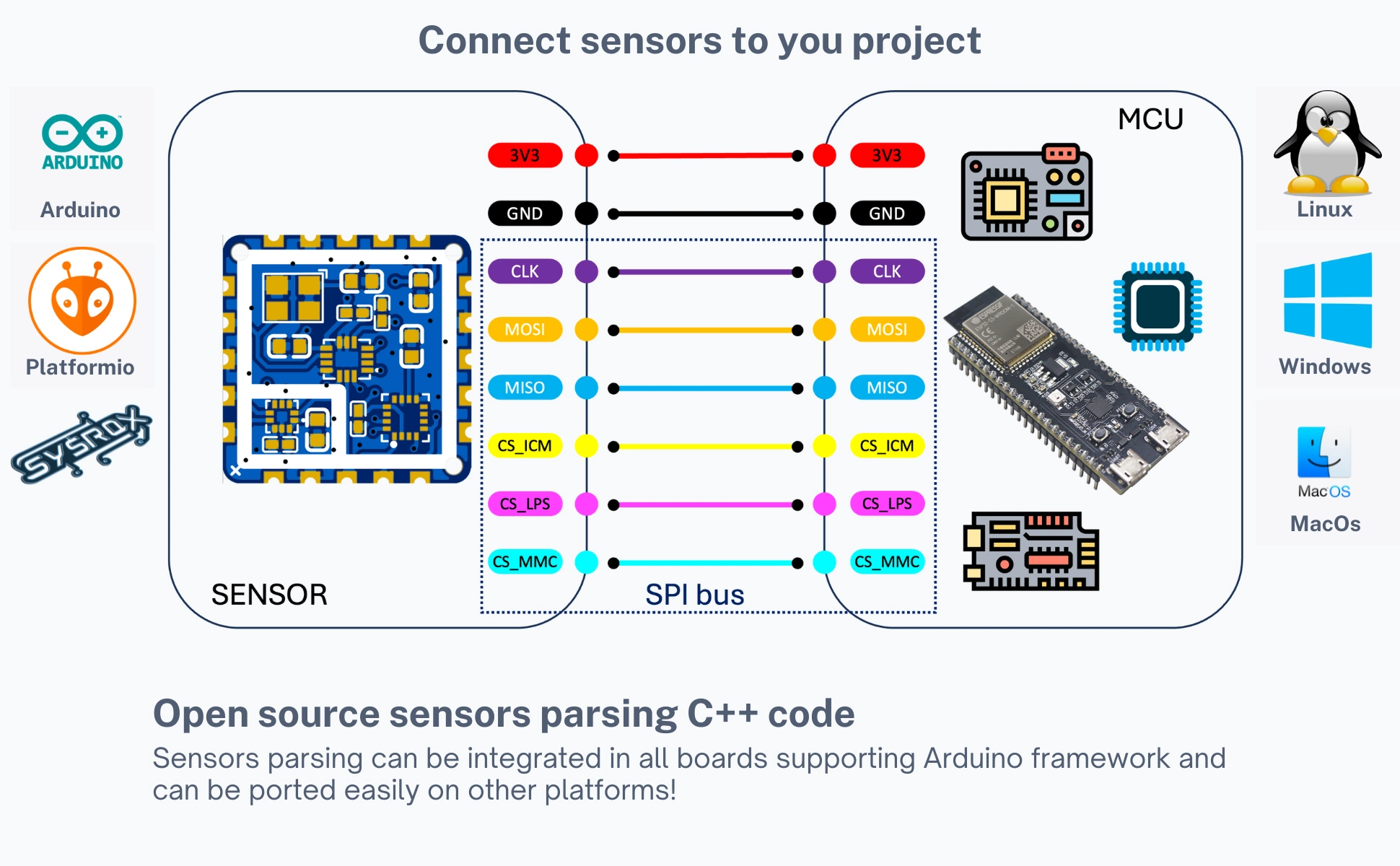

Sensors are chosen based on their low noise level, low drift, high resolution and are integrated in the most convenient form factor for robotic applications development. If the board contains multiple sensors they are linked by a unique high speed SPI bus.
Are devices 5V tolerant?
No. Except if specified, all devices only supports 3.3V for power supply and communication, which allow more compact designs.
Do all devices come with software support?
Yes. Codebase is organised as libraries and applications linked by a manifest file. A project is composed by an application and necessary libraries. All sensors boards come with a C++ parsing library at minimum. 6dof and 10dof devices come with a sensors fusion code. All code is fully tunable and easy to integrate in your project.
What is supported hardware for C++ libraries?
All boards supporting Arduino Framework should be compatible with sensors parsing libraries. Some functionalities are only available on specific hardware like CAN communication (ESP32 only), logging (ESP32 and teensy 4.X)... Sensors fusion is hardware agnostic and should supported on all platforms. As it is distributed as precompiled .a file, do not hesitate to Contact US if you need support for a specific platform.
What are the requirements for 10dof sensors fusion?
As the fusion algorithm is based on an Extended Kalman Filter, it requires high computational power. It is recommended to use a microcontroller with a FPU (Floating Point Unit) like ESP32 or Teensy 4.X. Generally we recommend to use a microcontroller with at least the computational power of one ESP32 core.
What does include documentation?
The documentation includes a quick start guide for every device. For each library a detailed API documentation is provided with examples of how to use it with any project. For sensors fusion, a detailed explanation of the algorithm is provided and a tuning guide is proposed.
Where are devices with included microcontrollers?
These boards are currently tested and should be available in the near future. 2 models are currently developped featuring a dual core ESP32-S3 with wifi and bluetooth capabilities. The most advanced model will include CAN transceiver, GPS module with antenna, SD card slot and advanced power management.
